Brady i7100, 600dpi - EU drukarka etykiet
Obrazy mają charakter wyłącznie ilustracyjny.
Parametry
Drukarki etykiet - rodzaj druku:
TT - druk termotransferowy (folia TTR)
Rozdzielczość:
600 dpi
Wyświetlacz:
Tak
Klawiatura:
Nie
Maksymalna szerokość wydruku:
105,66 mm
Zasilanie:
Sieć
Rodzaj drukarki:
Stacjonarna
Interfejs drukarki:
USB + LAN
Krajalnica:
Nie
Opis produktu
The BradyPrinter i7100 industrial thermal transfer benchtop printer is ideal for customers requiring reliable high volume printing on lots of different materials within the Aerospace, Defence and Mass Transit, Electronics, Automotive, Logistics, Electrical, Voice-Datacom and LAB markets. It guarantees accurate printing on sleeves, tags, labels, tapes, cable markers and much more
- Print on the widest range of materials with confidence, including difficult to print materials
- Peel configuration automatically peels labels from the liner
- Prints ultra-sharp on labels as small as 4 mm. with high accuracy
- Designed to print thousands of labels per day, everyday

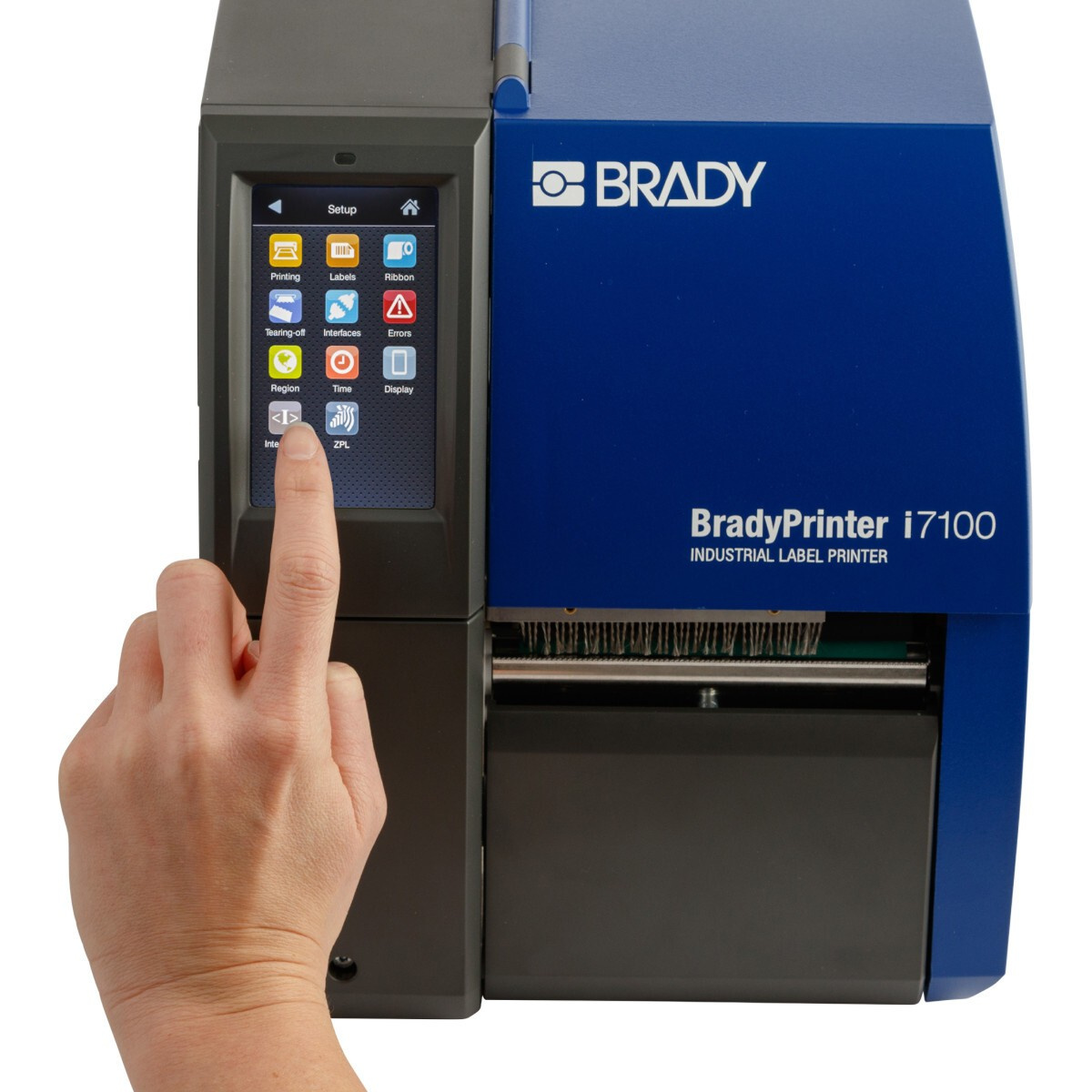

- Easy-to-use touch screen interface to adjust printer settings quickly and easily
- Ships with Brady Workstation Product Software. Add Wire ID Software Suite with built-in templates for fixed text or free-form label design options
| Size - Width (mm) | 251.46 mm | |
| Size - Height (mm) | 289.56 mm | |
| Size - Depth (mm) | 459.74 mm | |
| Weight (kg) | 10 kg | |
| Display Size | 50.80 x 91.44 mm | |
| Minimum Label Height (mm) | 4.00 mm | |
| Min. Label Width (mm) | 4.00 mm | |
| Dimensions | 251,46 mm (W) x 289,56 mm (H) x 459,74 mm (D) |
| Bar Code Type | Codabar, Codablock F, Code 128A, Code 128B, Code 128C, Code 39, Code 39 Full ASCII, Code 93, Deutsche Post Identcode, Deutsche Post Leitcode, EAN/UCC 128, EAN/UPC, EAN/UPC Extension 2, EAN/UPC Extension 5, EAN-13, EAN-8, FIM, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Truncated, GS1-128, HIBC, Interleaved 2 of 5, JAN-8, MSI, Plessey, POSTNET, UPC-A, UPC-E, UPC-E0 | |
| Battery Type | Lithium-manganese Battery | |
| Media Sensor | Black Mark, Gap Sensor, Notch, Reflective Sensor | |
| Language Support | Arabic Dutch, Bulgarian, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (US), Farsi, Finnish, French, German, Greek, Hungarian, Italian, Korean, Lithuanian, Macedonian, Norwegian (Bokmål), Polish, Portuguese, Romanian, Russian, Serbian, Slovenian, Spanish, Spanish (Mexico), Swedish, Thai, Turkish | |
| Calibration | Manual | |
| Connectivity Options | Ethernet, RS232, USB 2.0, USB Host | |
| Custom Labels Available | Yes | |
| Bar Code Type 3 | Yes | |
| Cutter | None | |
| Display Type | Colour LCD Screen | |
| Hardware Options | 101.60 mm media adapter, Auto cutter, Cleaning swabs, Cutter perforator, Cutter with tray, Extended peel plate, I/O interface accessory, Narrow width print rollers, Peel off, Platen rollers, Present sensor, Rewinder, WLAN USB stick with antenna | |
| Interface Type | PC, Touchscreen | |
| Internal Memory Capacity | 256 MB RAM, 50 MB IFFS Flash, SD card up to 512 GB | |
| Keyboard Type | None | |
| Label Dimensions | Max. Label Width: 110mm Min. Label Width: 4mm Min. Label Height : 4mm - 6mm (for the peel-version) | |
| Memory Capacity | 256MB RAM, 50MB IFFS Flash, SD card, slot up to 512GB | |
| Operating Humidity Range | 10%-85% (RH non-condensing) | |
| Operating System | Windows® 10, Windows® 7, Windows® 8, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016 | |
| Operating Temperature | 5°C - 40°C | |
| Stand Alone Printing | Stand-alone & Peripheral | |
| Power Source | AC Adaptor | |
| Power Supply Voltage | 100 - 240 V @ 50 - 60 Hz | |
| Storage humidity | 20%-85% (RH non-condensing) | |
| Storage Temperature | 0°C - 60°C |
| Print Technology | Direct Thermal, Thermal Transfer | |
| Print Speed (mm/sec) | 150.00 mm/s | |
| Colour Capability | Monocolour | |
| Resolution (dpi) | 600 dpi | |
| Display Resolution | 480 x 272 pixels | |
| Max. Label Width (mm) | 109.98 mm | |
| Max. Liner Width (mm) | 114.05 mm | |
| Recommended Usage per Day | 7000 | |
| Max. Print Width (mm) | 105.66 mm | |
| Max. Print Length (mm) | 2000.00 mm | |
| Max. Roll Outer Diameter (mm) | 204.98 mm | |
| Maximum Label Thickness (mm) | 1.00 mm | |
| Font Styles | Bitmap Default Font - 12x12 dots, Bitmap Default Font - 16x16 dots, Bitmap Default Font - 16x32 dots, Monospace 821, OCR-A Size I, OCR-B, Swiss 721, Swiss 721 Bold | |
| Hours of Operation | 24 hours/7 days | |
| On Screen Indicators | Bluetooth Status, Data Reception, Data Recording, Digital Clock, Ethernet Status, Ribbon Remaining, SD Memory Card inserted, Supply Remaining, USB Memory Stick inserted, USB Slave Status, WLAN Field Intensity | |
| Programming Language | abc Basic Compiler, Database Connector, Jscript, SAP Integration, ZPL Emulator | |
| Smart Cell | No |

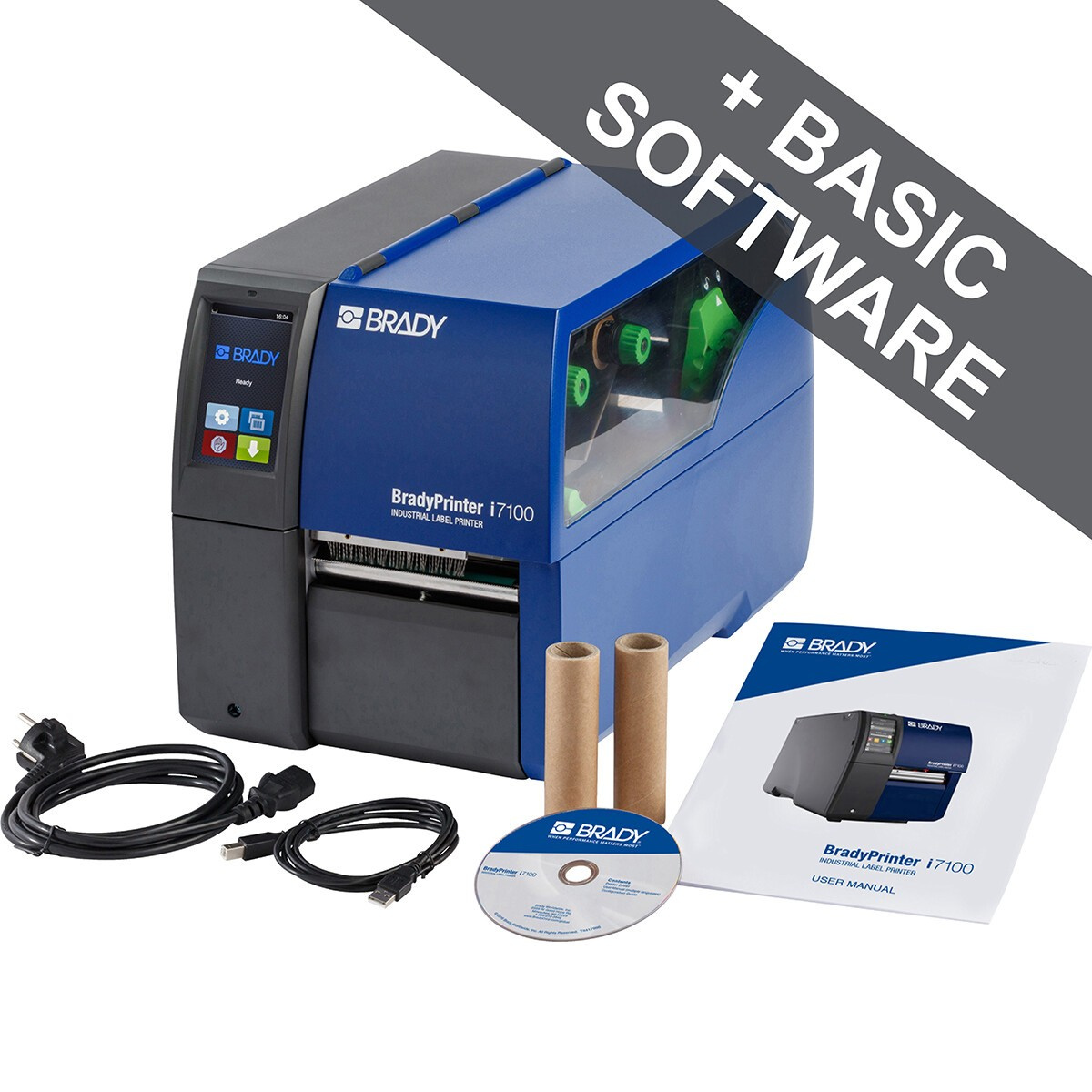

| Includes | This i7100 printer comes in a cardboard box. It ships with an EU power cord, a Brady Workstation Basic Suite, 2 empty ribbon cores, a USB cable, a product CD holding the driver, the user manual in languages, the configuration/settings manual in English and a printed user manual in English | |
| Warranty 2 years |
